The landfill area covers 95,400 m², with an embankment length of 1,275 m, a height of 6.3 m, a crest width of 6 m, and a total capacity of 403,200 m³. Within the project, 8,963 m³ of topsoil was removed, 34,285 m³ of waste was transported and disposed of, and 125,217 m³ of Class II–IV soil was excavated to construct the earth embankment. Inside the embankment, 78,436 m² of geomembrane was installed, along with 1,296 m of 160 mm diameter HDPE piping for leachate drainage and 14 gas outlet pipes. In addition, an evaporation pond with a capacity of 4,325 m³ for wastewater treatment was constructed and commissioned.

Сompleted by: D.Ganbat, G. Enkh-Orgil, O.Munkh-Erdene








Construction and Installation work

In the Ikh-Uul residential area of Dalanzadgad soum, Umnugovi aimag, stormwater drainage pipelines were constructed, comprising 736.5 meters of 500 mm diameter concrete pipes and 412.5 meters of 400 mm diameter concrete pipes, in addition to 37 catch basins and 43 inspection manholes. The project included the restoration of 200 m² of highway and 600 m² of pedestrian walkway, with all construction and installation activities completed.

Completed by: D.Ganbat, O.Munkh-Erdene, G.Enkh-Orgil

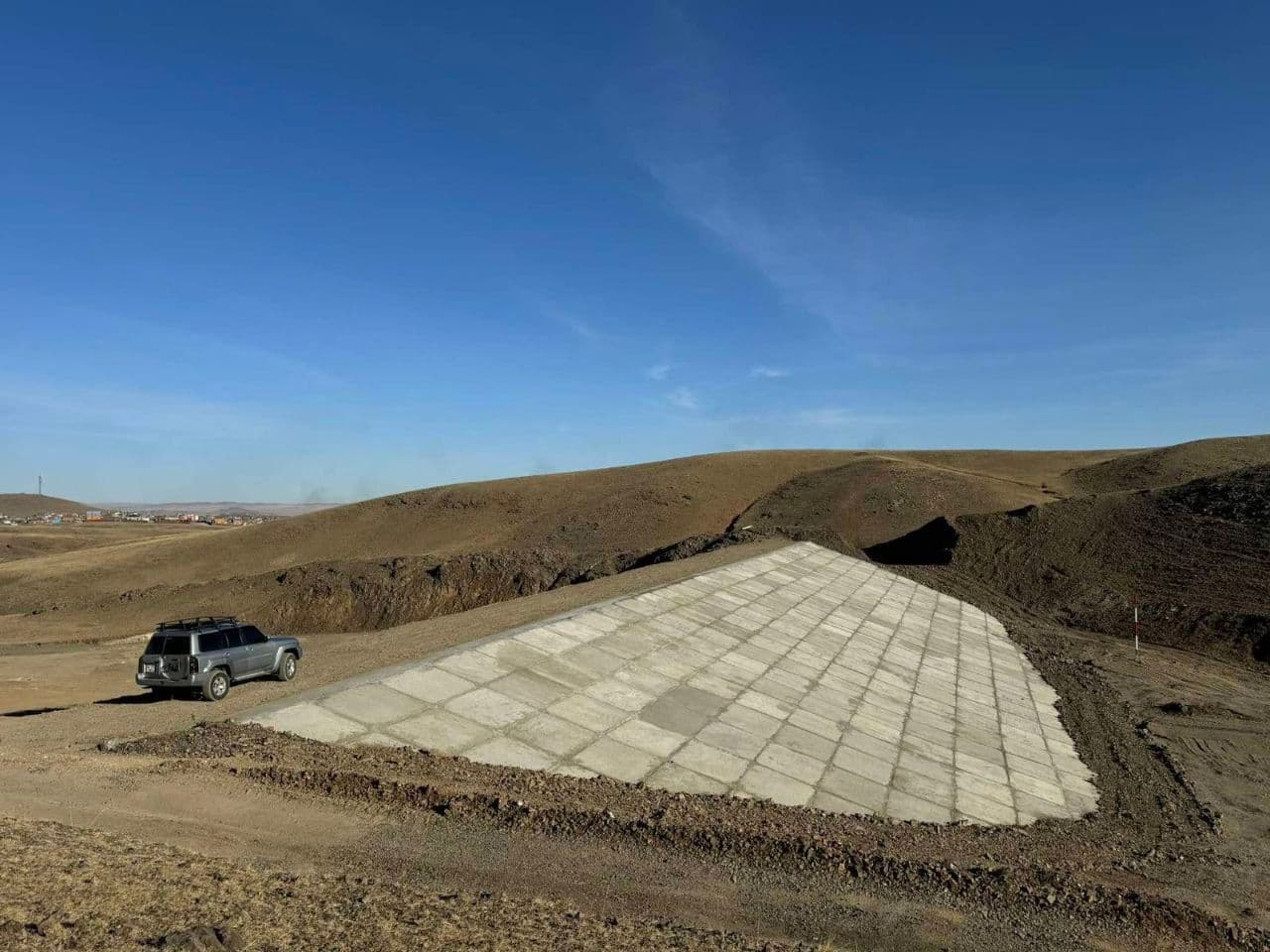

In order to guard against flooding, a 40,000 m3 earthen embankment has been constructed next to the Emt's chute channel source in Arvaikheer soum, Uvurkhangai aimag. The earthen embankment has reinforced concrete slabs on the upper side and a geomembrane. The embankment's crest height is 8 meters, its length is 97.4 meters, its width is 6 meters, its water discharge channel is 36 m, and its drainage pipe is 48 m.

Contstructed by D.Ganbat, E.Temuujin, O.Munkh-Erdene








Within this&nbsp; work a new 6,000 m3 dual biopond, a 665.6 m protective fence, and a 626 m&nbsp;flood protection channel were constructed at the central treatment plant in Khanhongor soum, Umnugovi aimag. Additionally, eight inspection wells and barrier structures for the sewage line underwent significant repairs.

Constructed by E.Temuujin, E.Enkh-Orgil, B.Baasansuren







For the water supply of the 9th bag of ger dictrict household center in Dalanzadgad soum, Umnugovi aimag, a 6,096 m HDPE SDR11 plastic pipeline, 29 prefabricated reinforced concrete inspection wells, and 4 culvert wells have been constructed and installed.

Completed by B.Ulziijargal and E.Sodbileg

Projects

Construct a centralized waste collection site in Tsogttsetsii soum

Construction and installation work on flood protection canals and dams in Ih-Uul residential area of Dalanzadgad soum

Construction and installation work of flow-regulating reservoir near the Emt’s chute channel for the purpose of protecting Arvaiheer soum from floods.

Construction and installation work of the treatment plant expansioin Khanhongor soum, Umnugovi aimag.

Construction and installation work of water distribution line-1,2 and water distribution branch line-1,2 of the second source of drinking water in Dalanzadgad soum.
